ISI Marked (IS:884)
Fire Hose Reel Drum (Swing / Fixed Type)
Fire Hose Reel Drum (Swing / Fixed Type) - view 1

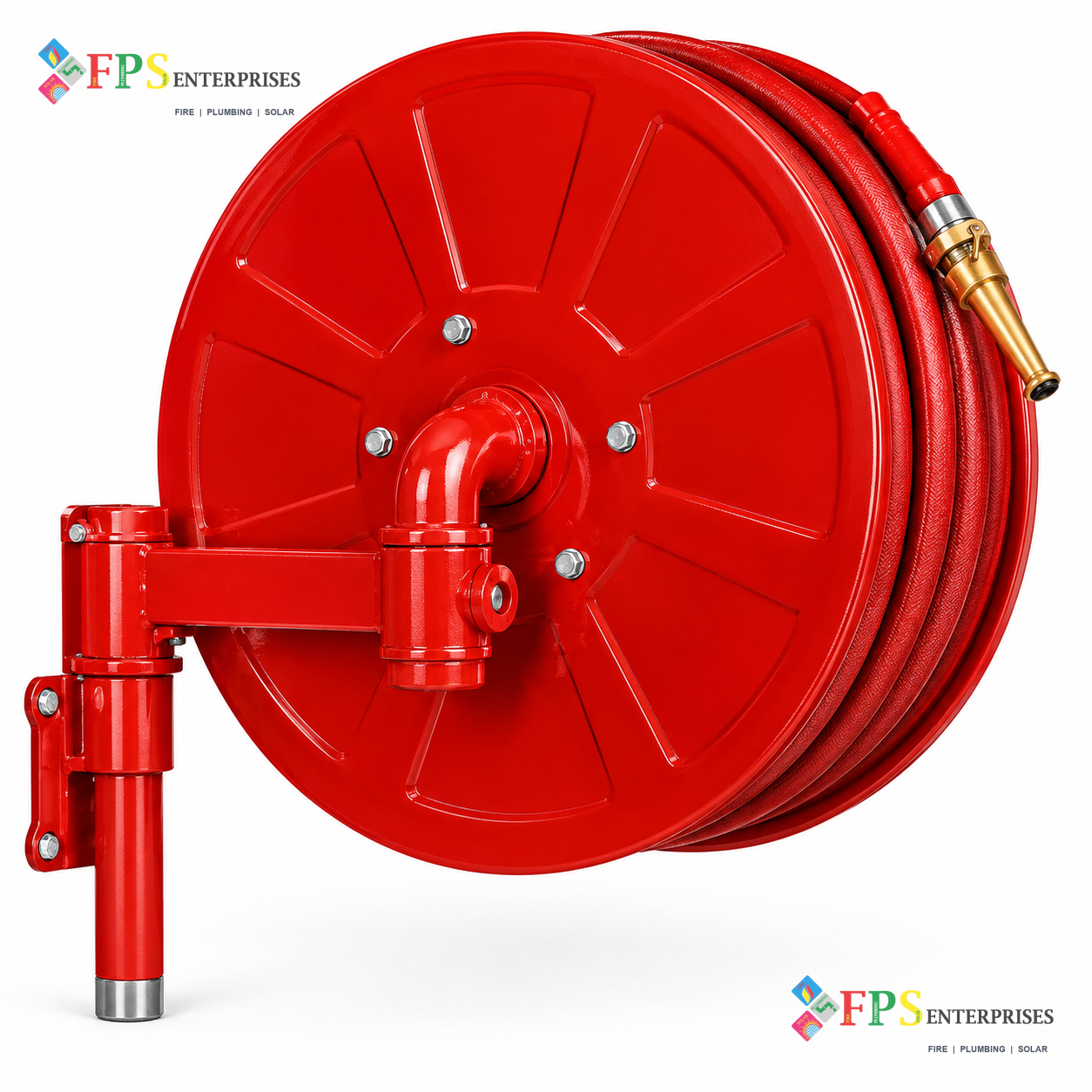

Fire Hose Reel Drum (Swing / Fixed Type) - view 2
FIRE PROTECTION SKU: FPS-FIREHOSE

Fire Hose Reel Drum (Swing / Fixed Type)

Price on Request / Enquiry Only

Heavy-duty swing and fixed type fire hose reels manufactured to IS:884 standards.

The Fire Hose Reel Drum (Swing / Fixed Type) is an essential, high-grade component designed and manufactured for robust performance in commercial, industrial, and residential fire protection systems. Engineered to meet rigorous safety benchmarks, it ensures maximum durability, seamless integration with fire riser pipelines, and fail-safe operation during emergency response scenarios.

FPS Enterprises supplies premium swing-arm and fixed-type fire hose reel drums with high-pressure reinforced PVC/rubber braided hoses. Tested and certified under IS 884:1985 standards. Designed for immediate first-aid response by building occupants before the arrival of professional fire brigades. Features precision brass shut-off jet/spray nozzles, corrosion-resistant drums, and optional lockable wall cabinets.

IS 884:1985 Marked
180° Full Swing Arm
30m Double-Braided Hose
Brass Jet/Spray Nozzle
18 Bar Hydrostatic Tested
Key Highlights & Capabilities:
  • Certified under IS 884:1985 with valid BIS ISI certification
  • Available in 180° swing-arm or wall-fixed mounting configurations
  • Standard 30-meter length high-pressure double-braided red PVC/rubber hose (19mm / 25mm ID)
  • Precision machined solid brass rotary shut-off jet/spray adjustable nozzle
  • Heavy-gauge mild steel side plates with UV-resistant electrostatic red powder coating
  • Corrosion-proof internal waterway and stainless steel swivel joint mechanism
  • Working pressure 12 bar (175 psi), hydrostatic proof test pressure 18 bar (260 psi)
  • Complete with hose guide arm, brass inlet stop valve, and wall mounting bracket
Call Expert Quick Enquiry Request a Quote

Get Expert Assistance

Tell us your requirement and our team will get back to you shortly.

We respect your privacy. Your information is secure with us.
Product Models & Variations

Available Sub-Products for Fire Hose Reel Drum (Swing / Fixed Type)

3 Models Available
Hose Reel Drum Malaysia Type
Model / Sub-Product
Hose Reel Drum Malaysia Type

/product/p_s_d6770c241df8d4cb

View Details
30Mtr Hose Reel Drum ISI Mark with Nozzle
Model / Sub-Product
30Mtr Hose Reel Drum ISI Mark with Nozzle

/product/p_s_fa457dfebf9faf1c

View Details
Hose Reel Drum Complete ISI Mark
Model / Sub-Product
Hose Reel Drum Complete ISI Mark

/product/p_s_100957175897b1b0

View Details
Genuine Products
from Trusted Brands
Customized Solutions
as per Project Need
Pan India Supply
& Timely Delivery
Installation &
Commissioning Support
Annual Maintenance
Contracts (AMC)
Dedicated
After Sales Support

Product Overview

IS 884:1985 Certified First-Aid Fire Fighting Equipment

The Fire Hose Reel Drum (Swing / Fixed Type) is an essential, high-grade component designed and manufactured for robust performance in commercial, industrial, and residential fire protection systems. Engineered to meet rigorous safety benchmarks, it ensures maximum durability, seamless integration with fire riser pipelines, and fail-safe operation during emergency response scenarios.

FPS Enterprises supplies premium swing-arm and fixed-type fire hose reel drums with high-pressure reinforced PVC/rubber braided hoses. Tested and certified under IS 884:1985 standards. Designed for immediate first-aid response by building occupants before the arrival of professional fire brigades. Features precision brass shut-off jet/spray nozzles, corrosion-resistant drums, and optional lockable wall cabinets.

Key Capabilities & Technical Highlights

Statutory Compliance & Engineering Performance
Certified under IS 884:1985 with valid BIS ISI certification
Available in 180° swing-arm or wall-fixed mounting configurations
Standard 30-meter length high-pressure double-braided red PVC/rubber hose (19mm / 25mm ID)
Precision machined solid brass rotary shut-off jet/spray adjustable nozzle
Heavy-gauge mild steel side plates with UV-resistant electrostatic red powder coating
Corrosion-proof internal waterway and stainless steel swivel joint mechanism
Section Graphic

Technical Specifications — Fire Hose Reel Drum

Engineering Data & Dimensions
Mounting Type 180° Swing Arm / Fixed Wall Mount
Hose Diameter 19mm (3/4") or 25mm (1") Internal Diameter
Hose Length Standard 30 Meters (Custom lengths available on request)
Hose Material Heavy-duty double-braided reinforced thermoplastic PVC / Synthetic EPDM rubber
Working Pressure 12 bar (175 psi)
Hydrostatic Test Pressure 18 bar (260 psi)
Burst Pressure Minimum 30 bar (435 psi)
Drum Side Plates Mild Steel 1.2mm / 1.6mm thickness with epoxy polyester powder coating
Waterway / Swivel Joint Gunmetal / Cast Bronze / Stainless Steel (Grade 304/316)
Shut-off Nozzle Solid Brass / Stainless Steel Rotary Jet & Spray Dual-action nozzle
Discharge Flow Rate ≥ 24 LPM at 7 bar effective throw ≥ 6 meters
Applicable Standard Complies strictly with IS 884:1985 / EN 671-1 / CE

Product Documentation & Datasheets

Download official technical files
Fire Hose Reel Technical Specifications (PDF)
PDF Technical Data Sheet

Frequently Asked Questions

Answers to common engineering and installation queries

Each product batch undergoes thorough manufacturer quality verification, hydrostatic pressure testing at 18 bar, and conforms to applicable IS 884:1985 / BS / NFPA fire safety product specifications.

As per National Building Code (NBC) guidelines, fire hose reels should be installed at a height of 1.2m to 1.5m from the finished floor level to the centre of the drum for quick access during emergency response.

Yes, it is fitted with a 25mm (1 inch) BSP/NPT female/male inlet connection compatible with standard landing valve take-offs and fire riser downcomers.
